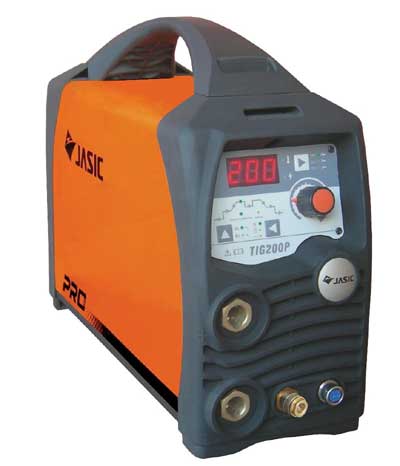

Jasic PRO TIG 200 Pulse Dual Voltage Inverter TIG Welder

Description

Jasic PRO TIG 200 Pulse Dual Voltage Inverter TIG Welder

200 Amp DC Pulsed TIG/MMA Inverter Welder

Dual Voltage 230v/110v

Digitally controlled, fully adjustable parameters with memory store

Package including TIG Torch & Gas Regulator

Supply Voltage: 230v or 115v with Smart-Switching

Input Power from 230v Supplies (kVA): TIG 6.0 MMA 8.2

Input Power from 115v Supplies (kVA): TIG 4.0 MMA 5.0

Output Range from 230v Supplies: TIG 10A – 200A MMA 10A – 180A

Output Range from 115v Supplies: TIG 10A – 130A MMA 10 – 100A

Duty Cycle @ 40C: 35% @ 200 Amps from 230v 35% @ 130 Amps from 115v

Dimensions: 365mmL x 135mm W x 277mm H

Weight (machine only): 6.12kg

Protection/Insulation Class: IP21S/F

Standards of Conformance : ALL

Warranty: 5 Years
