R-Tech DC TIG Welder 160 Amp 240v

 Amperage range  DC 10-160A, MMA 20-125A
 Duty cycle  TIG 160A 35% – MMA 125A 35%
 Input voltage/amps  240v 13A  – No load voltage 70v
 LED Display  Shows preset & actual amperage
 Pulse Frequency  0.5 – 250 Hz
Slope up  0 – 5 seconds
Slope down  0 – 10 seconds
 Post flow gas  0 – 25 seconds
 HF Start  Yes
 2T/4T Trigger  Yes
 Gross weight  13KG
 Dimensions  L x W x H
 Foot pedal option  Yes
 Insulation class  IP21S
Cooling fan  Yes – Cooling fan with thermostatic protection
 Max Thickness  5MM Single Pass
 Max Thickness Steel  10MM Multiple Passes

The NEW R-Tech TIG160FPP is a feature rich 160Amp TIG Welder with 240V input, high frequency starting, pulse welding, slope up/down, LED display, high 35% duty cycle and optional foot pedal.

 Please note this is a DC Machine and will not weld Aluminium

Built with class leading Siemens IGBT’s – Not inferior Mosfets

Portable and lightweight – ideal for maintenance and fabrication work

Suitable for welding all types of steels plus brass and copper

160Amp TIG and 125Amp MMA output

HF start – Enables easy starting of arc

Pulse TIG welding to allow greater control of heat into weld pool

240v 13A input required – use anywhere with a 13A socket

Slope up, slope down and post flow gas

Optional foot pedal available

Package Includes, R-Tech TIG160FPP TIG welder, 4m WP17 Superflex TIG torch, earth lead, MMA Lead, gas hose, mains cable, argon regulator, owners manual, torch consumables kit including 1.6mm & 2.4mm red tungstens

3 year collect and return UK warranty

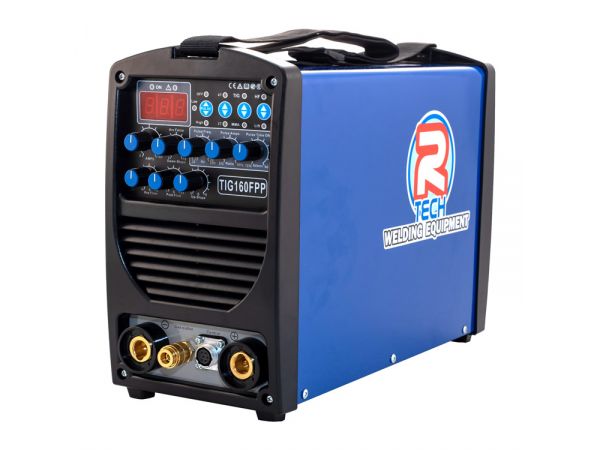

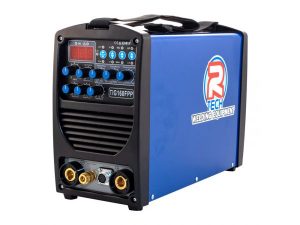

(Image for illustrative purposes)

Additional information

Weight 17 kg
