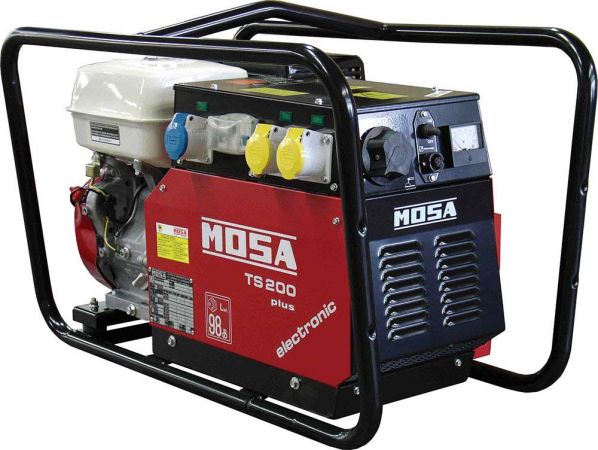

Welder Generator Mosa TS 200 BS/EL PLUS

Description

Welder Generator Mosa TS 200 BS/EL PLUS

190 amp – DC welding output

Stepless electronic welding control

AC generator output – 4kVA 110/230V

12V battery boost facility

Wraparound protective frame

Portable – Complete with wheel kit

EEC noise compliant

Remote control option

Current Range (Continuous) 20 – 190A

Open Circuit Voltage 65V

Duty Cycle (Intermittent) 190A @ 60% 140A @ 100%

Electrode Diameters 2 – 4 mm

AC Generation – Single Phase 4 kVA 230V @ 100% Duty Cycle

AC Generation – Single Phase C.T.E. 2 x 2 kVA 110V @ 100% Duty Cycle

Engine Type Honda GX 390 Petrol, 4 Stroke

Engine Output 8.4 kW (11.4 HP)

Engine Speed 3000 rpm

Displacement Cylinders 389 cm3/1

Fuel Consumption 2.1 l/hr

Fuel Tank Capacity 6.5 Litres

Running Time @ 60% Load 3.5 Hours

Protection IP 23

Noise Level 98 LWA 73 dB(A)

Weight Kg 105

Dimensions (mm) 870 x 525 x 592

Options :-

TC2 – Remote Control (20 Meters)

Free delivery to UK mainland

1 Year RTB warranty – collection/return arranged (UK mainland only)

Complete with CTM200 wheel kit
