XTS403 MMA/TIG package

Description

Model XTS403
Output current 20400A
Input voltage 400V 3ph
Maximum electrode 5.0mm
Input current 27A
Hot start function YES (adjustable)
Arc force function YES(adjustable)
Basic/Rutile function YES
Cellulistic function YES
Lift TIG function YES
No load voltage 50VRD
Cable connection 35-50dix
Duty cycle 400A @ 60%
Fuse rating 16A
KVA 16
Enclosure protection IP23S
supplied with
1 x Electrode holder
1 x 3m Cable
1 x 3m Earth lead
1 x Wire brush

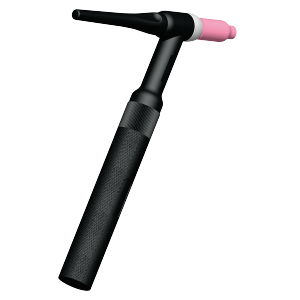

1 x wp26V scratch start TIG torch

Additional information
