Mould Box Traditional Heavy Duty Timber 325mm x 325mm x 200mm
£175.92
- Description
- Additional information
- Reviews (0)
Description

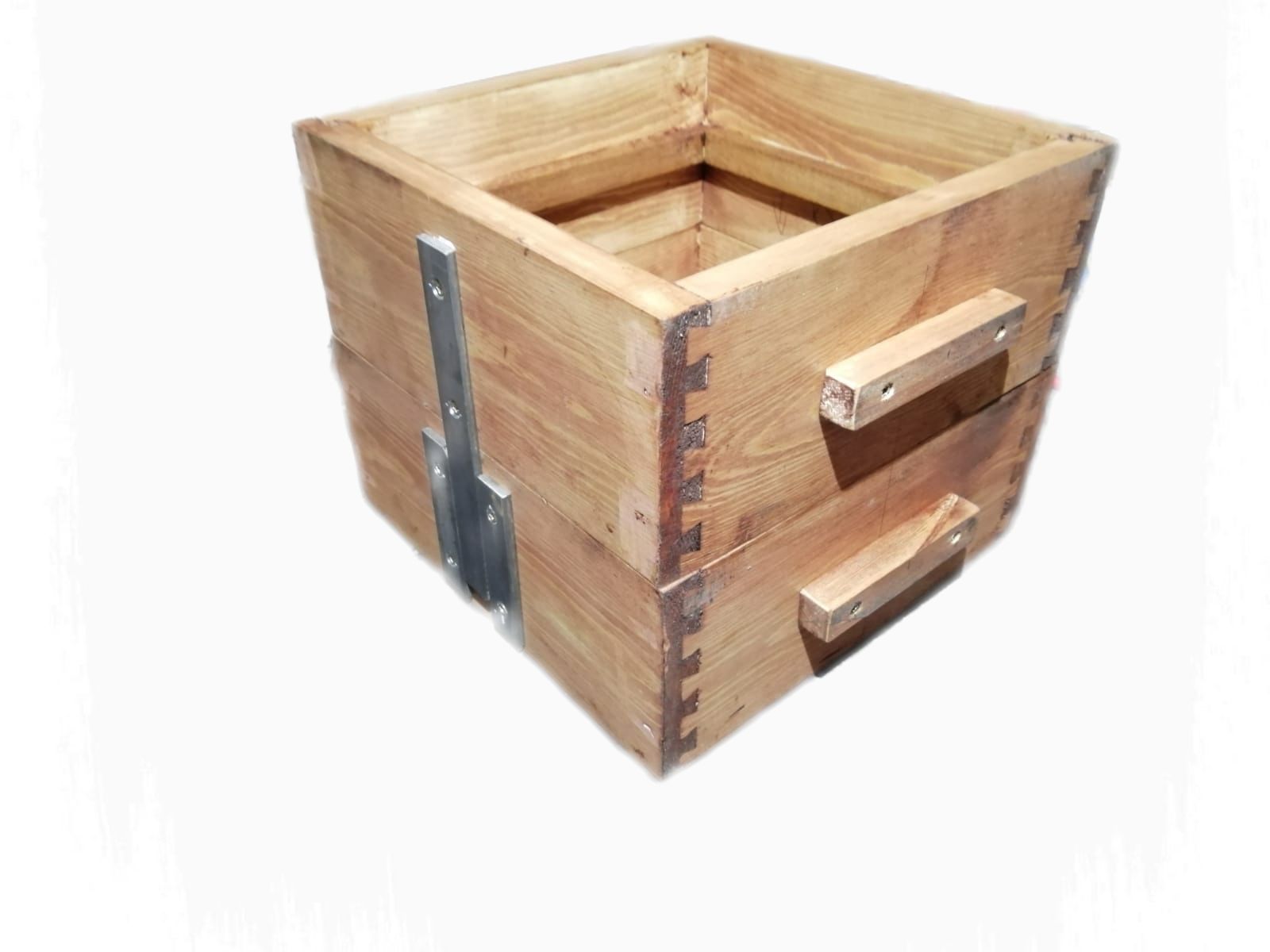

Mould Box Traditional Heavy Duty Timber 325mm x 325mm x 200mm
Mould Box Traditional Heavy Duty Timber Construction
For the casting of low temperature metals using green sand or oil bonded sand process.
Ideal for Aluminium, brass, Bronze, Cast iron, Nickel, Copper, Silver, Gold etc
1 x Cope + 1 x Drag as a matched pair.
325mm x 325mm x 200mm
SDTS Engneering Ltd are manufactures of foundry and forging equipment.
Constructed of Quality Timber ” Like they used to be back in the hay day”
What customers have said about our mould boxes
”The Best on the market” , ” I have never seen them as good as these” , ” Very well accurate and made to last”
Moulding boxes hold the sand when a mould is being made. Accurate positioning of the cope (top box) onto the drag ( bottom box) is possible due to tapered start then parallel alignment pin finish. Our moulding boxes are precision made to High tolerances. As they are made to order they have a 2 week Manufacture time. Steel Moulding box pins should be regularly lubricated with graphite and should never be hit with hammers or mallets as this will put them out of alignment. When Knocking out the moulding boxes the boxes themselves and pins should not be hit as this can knock them out of square and damage the mating faces. They are fitted with two bar loop handles. Box faces are ground level and parallel.
(Made from High Quality redwood and or Hardwood with Steel buckles, Handles & Pins)
Available to any size required pricing upon request.
All Our mould boxes are manufactured to order and dispatch is within 2 weeks
Additional information
Weight | 6.5 kg |
---|
